BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft

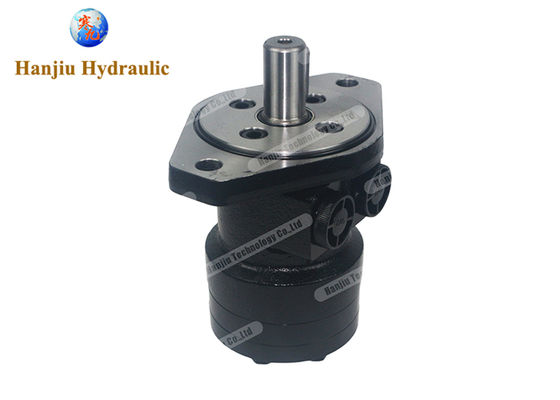

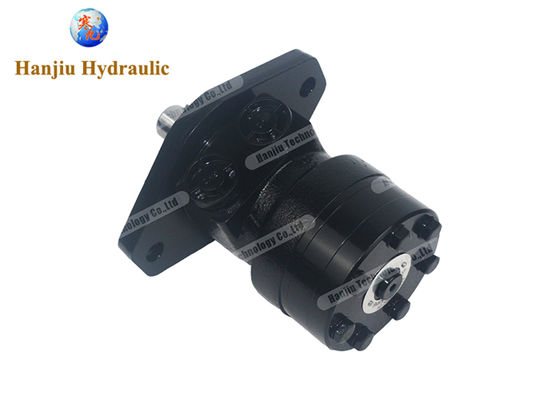

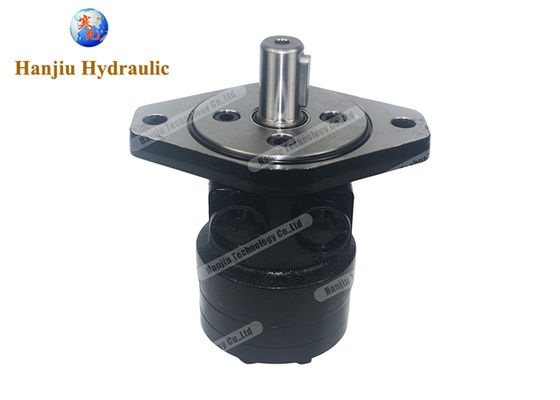

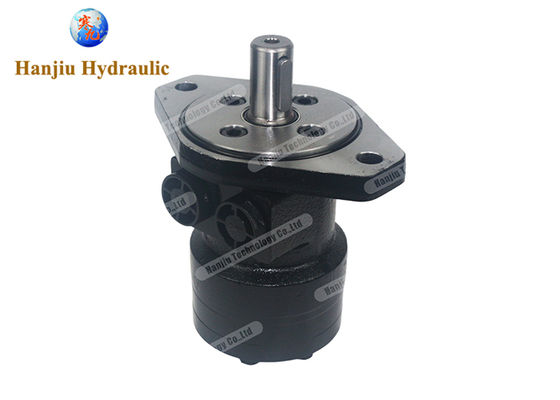

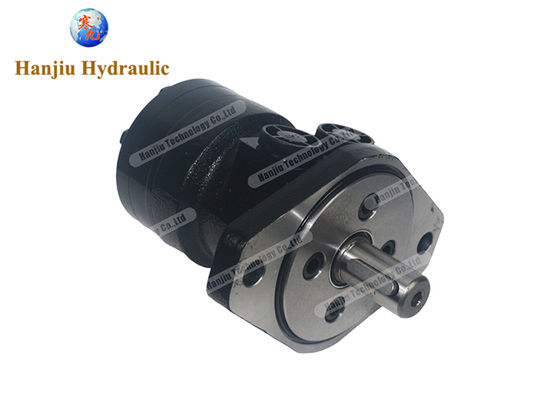

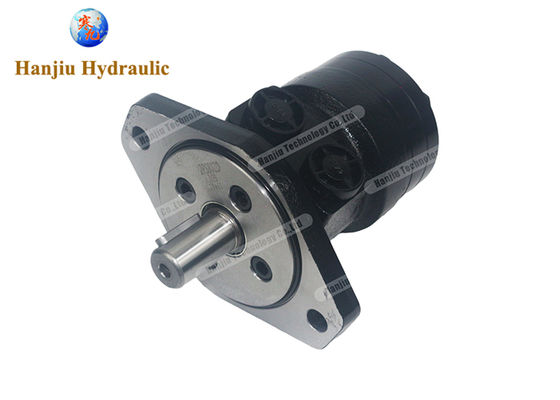

Gambar besar : BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft

Detail produk:

Tempat asal:	Cina
Nama merek:	HANJIU
Sertifikasi:	CE
Nomor model:	BMRS-80-H7-AG

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 buah
Harga:	Contact seller for latest offer
Kemasan rincian:	Karton, Kotak, Palet
Waktu pengiriman:	35 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, Paypal
Menyediakan kemampuan:	200000 lembar per tahun

Kontak

Detil Deskripsi produk

Produk:

Motor hidrolik

Model no.:

BMRS-80-H7-AG

pabrikan:

Hanjiu

Asal:

Menyoroti:

Gerotor hydraulic motor SAE B flange

Compact hydraulic motor 80cc

Low speed high torque hydraulic motor

BMR OMR MR BMR-80 Hydraulic Motor, 80ml/r, 2 bolt SAE B mounting, 25mm Straight shaft

Product Specifications

Attribute	Value
Product	Hydraulic motor
Model No.	BMRS-80-H7-A-G
Manufacturer	Hanjiu
Origin	China

Quick Review

Shaft: 25mm straight Key shaft
Flange: SAE "B" 2-Bolt Mounting
Ports: G1/2
Drain: G1/4
Corrosion-resistant Black Paint

Technical Specifications

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type	BMR BMRS 40	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 400
Geometric displacement (cm³/rev.)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4

Technical data for BMR with 31.75 and 32 shaft:

Type	BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm³/rev.)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4

* Continuous pressure: Max.value of operating motor continuously.
* Intermittent pressure: Max.value of operating motor in 6 seconds per minute.
* Peak pressure: Max.value of operating motor in 0.6 second per minute.

Key Features

Displacement: 4.6 in³/rev (76 cm³/rev)
Max Speed: 750 rpm (cont) / 940 rpm (int)
Max Torque: 195 N.M (cont) / 220 N.M (int)
Max Differential: 17.5MPA (cont) / 20MPA (int)
Max Flow: 60l/min (cont) / 75l/min (int)

Replacement for:

Char-Lynn 103- SERIES

If you are a bulk importer, please contact us for cooperation terms and preferential quotes.

More Products in BMR Series

About HANJIU Technology

Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.

Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields.

Specializations

Eaton Char-lynn replacement/alternative/compatible motors
Sauer Danfoss replacement/alternative/compatible motors
Parker replacement/alternative/compatible motors
Brevini replacement/alternative/compatible Motors
M+S replacement/alternative/compatible motor
