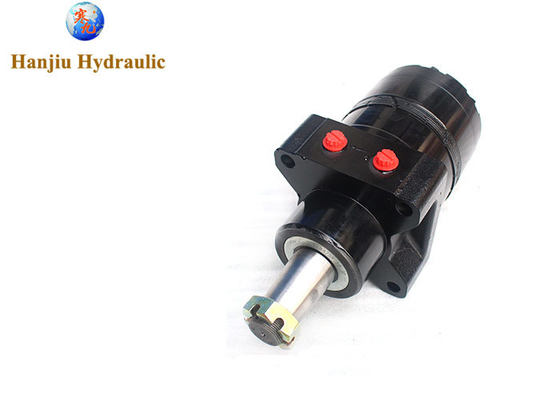

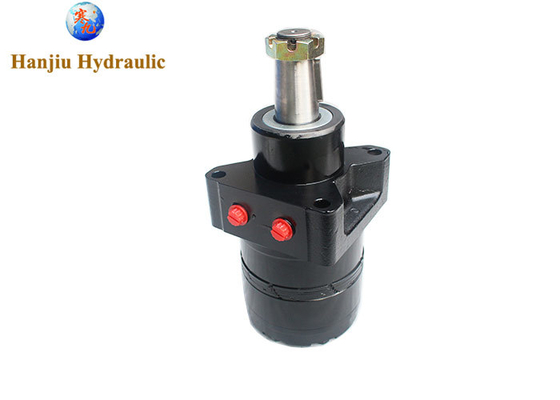

BMER-3-475 Low Speed High Torque Hydraulic Motor 475ml/r Cast Iron

Gambar besar : BMER-3-475 Low Speed High Torque Hydraulic Motor 475ml/r Cast Iron

Detail produk:

Tempat asal:	CINA
Nama merek:	HANJIU
Sertifikasi:	CE, ISO9001
Nomor model:	BMER-3-475-WS1T31

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 buah
Harga:	170 usd/pc
Kemasan rincian:	kotak, palet
Waktu pengiriman:	35 - 45 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	10.000 lembar per tahun

Kontak

Detil Deskripsi produk

Produk:	Motor Hidraulik Torsi Tinggi Berkecepatan Rendah	Model No.:	BMER-3-475
Ukuran:	475ml/r	Flens:	Magneto Mount 4-Hole Flange
Batang:	Poros kunci 25,4 mm	Rotasi:	CCW
Pelabuhan:	7/8-14UNF	Bahan:	besi cor
Menyoroti:	low speed high torque hydraulic motor 475ml/r , cast iron hydraulic motor with warranty , 475ml/r hydraulic motor for heavy duty

ZOOMLION XCMG SINOBOOM Manlift & Aerial Work Platform Travel Hydraulic Motor BMER-475 WS1T31

Product Overview

Low Speed High Torque Hydraulic Motor designed for manlifts and aerial work platforms, model BMER-3-475-WS1-T31 with 475ml/r displacement.

Key Attributes

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-3-475-WS1-T31
Size	475ml/r
Flange	Wheel flange
Shaft	Cone-Shaft Ø38.1, Parallel key
Rotation	CCW
Port	7/8-14UNF
Material	Cast iron

Quick Specifications

Model No.	BMER-3-475-WS1-T31
Displacement	475 ml/r
Flange	Magneto mount 6-hole
Pilot	82.55*2.8
Ports	7/8-14UNF
Output Shaft	Tapered shaft
Rotation	Right
Paint	Black

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Proper Use & Maintenance Guidelines

Installation: Select the proper type and size for your application. Follow manufacturer instructions for hydraulic line connections and fluid supply.
Hydraulic Fluid: Use approved hydraulic fluid and maintain proper oil temperature and quality. Periodically inspect and replace fluid.
Control Valves: Use appropriate hydraulic control valves to regulate flow and pressure. Adjust valve operation to achieve desired speed and torque.
Load Management: Operate within specified load ranges to prevent damage to motor and system components.
Maintenance: Regularly inspect seals, filters, and fluid condition. Clean motor housing to prevent contamination.
Safety: Follow all safety procedures and ensure operators are properly trained on motor operation and principles.
