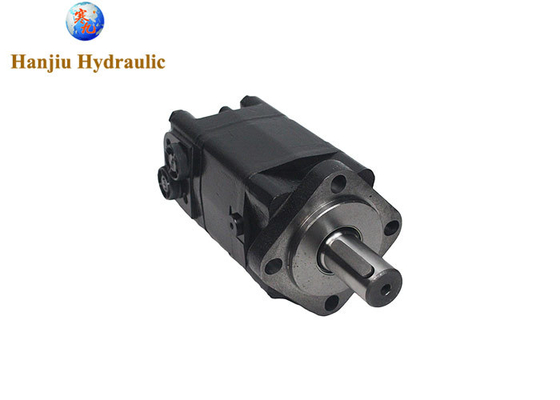

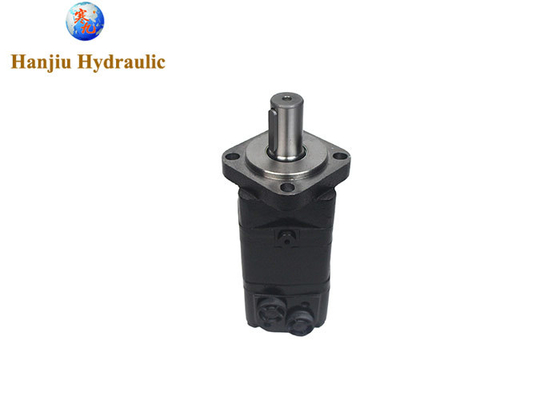

hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment

Gambar besar : hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment

Detail produk:

Tempat asal:	CINA
Nama merek:	HANJIU CHINA
Sertifikasi:	CE
Nomor model:	BMSY-200-E4-BD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 buah
Harga:	Contact the seller to ask
Kemasan rincian:	kotak, palet
Waktu pengiriman:	25 - 35 hari kerja
Syarat-syarat pembayaran:	L/C,D/A,T/T,Western Union,Payple
Menyediakan kemampuan:	100000 lembar per tahun

Kontak

Detil Deskripsi produk

Barang:	Motor hidrolik	Jenis:	Torsi tinggi kecepatan rendah
Flens:	magnet pemasangan	Batang:	Poros spline
Materia:	besi cor	Jaminan:	12 bulan
Menyoroti:	BMSY series hydraulic orbit motors , Mini Digger hydraulic motor attachment , Low Speed High Torque hydraulic motor

hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment

Product details:

type code BMSY-200-E4-B-D

Displacement:200CC

Flange:

4-Ø13.5 Wheel-flange Ø160 ,

pilot Ø125×8

Shaft:

Shaft Ø 32 , parllel key 10×8×45

Ports:

G1/2 Manifold Mount;

2-M10 , G1/4

BMSY introduction:

This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment 0

hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment 1

hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment 2

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment 3

The orbital motor supplied by Hanjiu is widely used in many fields. In the field of construction machinery, orbital motor drives the slewing mechanism of excavators, the working device of loaders, etc., which helps these large-scale machines work efficiently; in the field of agricultural machinery, it provides stable power for seeders, harvesters, etc., which promotes the mechanization process of agricultural production; in the field of logistic equipments, orbital motor drives conveyor belts, stackers, etc., which improves the efficiency of logistics and transportation. In logistics equipment, orbital motor drives conveyor belts, stacker cranes, etc. to improve the efficiency of logistics transportation. With excellent performance and stable quality, Hanjiu orbital motor has won the trust and praise of many customers.
