hydraulic orbital motor OMV800,BMV800 drive motor with tapered shaft for beet harvesters

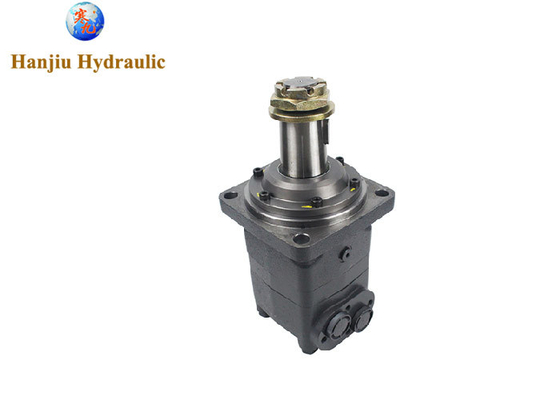

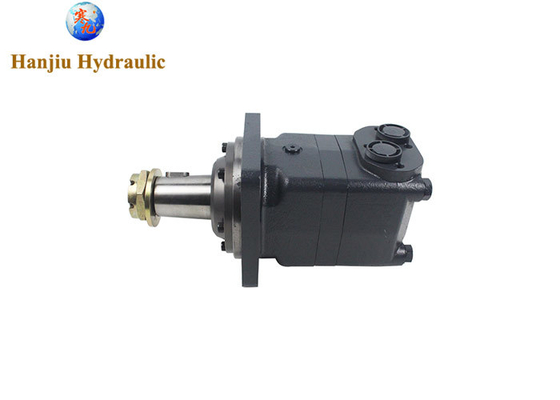

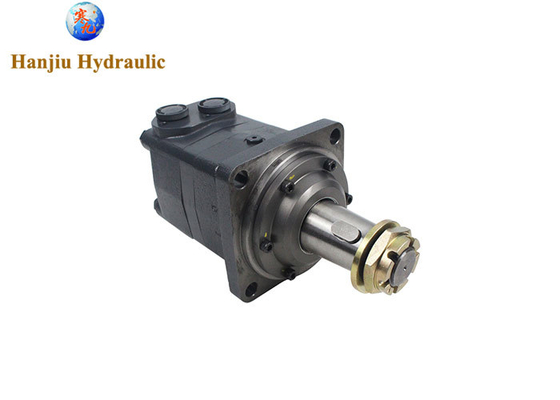

Gambar besar : hydraulic orbital motor OMV800,BMV800 drive motor with tapered shaft for beet harvesters

Detail produk:

Tempat asal:	CINA
Nama merek:	HANJIU
Sertifikasi:	ISO9001:2015
Nomor model:	BMV800

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	20 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Pengemasan karton, dan akhirnya dengan palet atau kotak kayu
Syarat-syarat pembayaran:	L/C, T/T, Western Union, Paypal
Menyediakan kemampuan:	100,000 set per tahun

Kontak

Detil Deskripsi produk

Kategori-kategori:	Motor berat hidraulik	Nama:	BMV800
max.output:	CONT.33KW/INT.44KW	Torsi maksimum:	cont.1880n.m/int.2110n.m
Flens:	Flensa persegi	Batang:	poros meruncing
Menyoroti:	hydraulic orbital motor for beet harvesters , OMV800 tapered shaft drive motor , BMV800 orbit hydraulic motor

Hydraulic Orbital Motor OMV800/BMV800 with Tapered Shaft for Beet Harvesters

Product Specifications

Attribute	Value
Categories	Hydraulic Heavy Motor
Name	BMV800
Max. Output	cont.33kw/int.44kw
Max. Torque	cont.1880N.m/int.2110N.m
Flange	Square Flange
Shaft	Tapered Shaft

The HANJIU OMV800/BMV800 hydraulic gerotor motor is specifically designed for Holmer and Ropa sugar beet harvesters (Type Code No. 272115).

Technical Parameters

Geometrical displacement: 801.8 cm³/r
Max. Speed: 250/300 min⁻¹ [rpm]
Max. Torque: 1880 Nm [16640 lbf*in]
Max. Output: 42.5 kW [57.0 hp]
Max. Oil flow: 200 l/min [52.8 USgal/min]
Max. Inlet pressure: 210 bar [3050 psi]

BMV Series Specifications Comparison

Type	BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm³/rev.)	333	419	518	666	801	990
Max. speed (rpm)	cont. 510 int. 630	cont. 500 int. 600	cont. 400 int. 480	cont. 320 int. 380	cont. 250 int. 300	cont. 200 int. 240
Max. torque (N*m)	cont. 920 int. 1110 peak 1290	cont. 1180 int. 1410 peak 1640	cont. 1460 int. 1760 peak 2050	cont. 1660 int. 1940 peak 2210	cont. 1880 int. 2110 peak 2470	cont. 2015 int. 2280 peak 2400
Max. output (kW)	cont. 38 int. 46	cont. 47 int. 56	cont. 47 int. 56	cont. 40 int. 56	cont. 33 int. 44	cont. 28.6 int. 40
Max. pressure drop (MPa)	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 18 int. 21 peak 24	cont. 16 int. 18 peak 21	cont. 14 int. 16 peak 18
Max. flow (L/min)	cont. 160 int. 200	cont. 200 int. 240	cont. 200 int. 240	cont. 200 int. 240	cont. 200 int. 240	cont. 200 int. 240
Weight (kg)	31.8	32.6	33.5	34.9	36.5	38.6

Applications in Beet Harvesters

This orbital motor is essential for multiple systems in agricultural harvesters:

Walking Drive System: Powers hydrostatic transmission with low-speed, high-torque performance for optimal mobility on challenging terrain
Cutting Platform Control: Delivers precise elevation control and automatic terrain profiling
Material Conveyor System: Drives chains, agitators, and elevators for smooth crop material flow
Attachment Drives: Powers auxiliary systems including unloading mechanisms and straw processing equipment
