Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Produk: | Konveyor kapas | Penghapusan: | 200ml/r |
|---|---|---|---|
| Flang: | 4 baut flensa persegi | Batang: | poros kerucut φ35mm |
| Aliran Maks: | CONT.75/INT.90 L/MIN | Kecepatan maksimum: | CONT.375/INT.450RPM |
| Menyoroti: | Motor hidraulik flange persegi,Motor hidraulik tekanan tinggi,motor hidraulik poros kerucut |
||

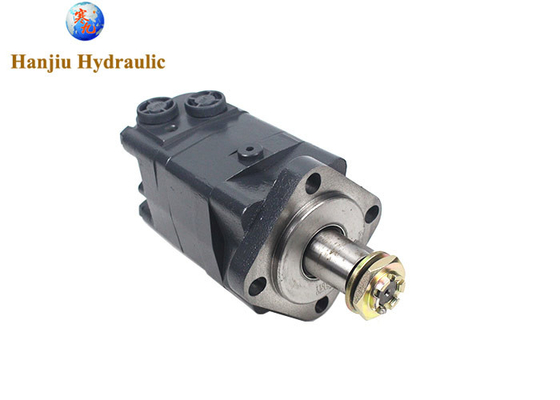

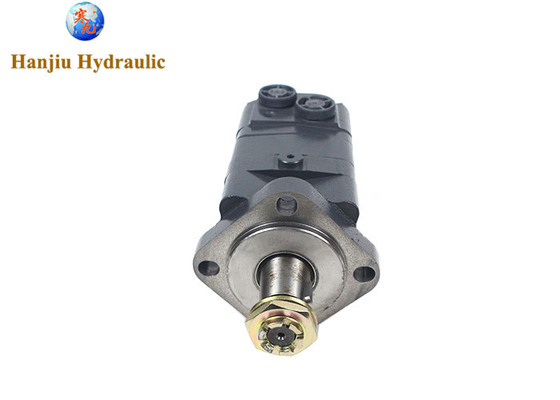

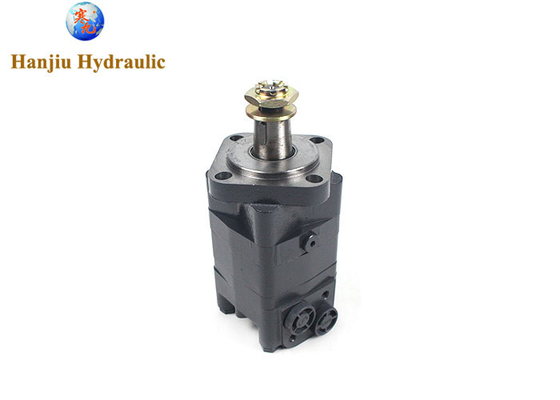

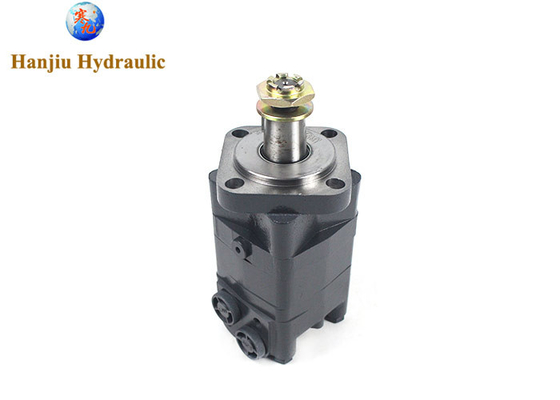

Orbital Motors BMSY-200,poros kerucut dengan flange persegi motor hidrolik tekanan tinggi
Rincian produk:
Perpindahan: 200cc
Flange: 4 bolt flange persegi, φ106.4mm
poros: φ35mm poros kerucut
Pelabuhan minyak:G1/2
Pelabuhan pembuangan:G1/4
| Jenis | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 400 |
BMSY 475 |
|
| Pergeseran geometris (cm3 / rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 | |
| Kecepatan maksimum (rpm) | Kont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Torsi maksimum (N·m) | Kont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 | |
| puncak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | ||
| Maks. output (kW) | Kont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 | |
| Max. penurunan tekanan (MPa) | Kont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 | |
| puncak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 | |
| Max. aliran (L/min) | Kont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Tekanan masuk maksimum (MPa) | Kont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Berat (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 | |
* Tekanan terus menerus: Nilai maksimum dari motor yang beroperasi terus menerus.
* Tekanan intermiten: Maks. nilai motor operasi dalam 6 detik per menit.
* Tekanan puncak: Maks. nilai motor operasi dalam 0,6 detik per menit.
Jenis yang berbeda dengan poros yang berbeda, multipal flange
| 151F2300 | 151F2301 | 151F2302 | 151F2303 | 151F2304 | 151F2305 | 151F2306 | 151F2307 | 151F2345 |
| 151F2316 | 151F2317 | 151F2318 | 151F2319 | 151F2320 | 151F2321 | 151F2322 | 151F2323 | 151F2347 |
| 151F2308 | 151F2309 | 151F2310 | 151F2311 | 151F2312 | 151F2313 | 151F2314 | 151F2315 | 151F2346 |
| 151F2324 | 151F2325 | 151F2326 | 151F2327 | 151F2328 | 151F2329 | 151F2330 | 151F2331 | 151F2348 |
| 151F2332 | 151F2333 | 151F2334 | 151F2335 | 151F2336 | 151F2337 | 151F2338 | 151F2339 | 151F2349 |
| 151F2377 | 151F2378 | 151F2379 | 151F2380 | 151F2381 | 151F2382 | 151F2383 | 151F2384 | 151F2385 |
| 151F2368 | 151F2369 | 151F2370 | 151F2371 | 151F2372 | 151F2373 | 151F2374 | 151F2375 | 151F2376 |
| 151F2359 | 151F2360 | 151F2361 | 151F2362 | 151F2363 | 151F2364 | 151F2365 | 151F2366 | 151F2367 |
| 151F2350 | 151F2351 | 151F2352 | 151F2353 | 151F2354 | 151F2355 | 151F2356 | 151F2357 | 151F2358 |
| 151F2395 | 151F2396 | 151F2397 | 151F2398 | 151F2399 | 151F2400 | 151F2401 | 151F2402 | 151F2403 |
| 151F2413 | 151F2414 | 151F2415 | 151F2416 | 151F2417 | ||||
| 151F0521 | 151F0522 | 151F0523 | 151F0524 | 151F0525 | 151F0526 | 151F0527 | 151F0610 | |
| 151F2235 | 151F2236 | 151F2237 | 151F2238 | 151F2239 | 151F2240 | 151F2241 | 151F2265 | 151F2266 |
| 151F0528 | 151F0529 | 151F0530 | 151F0531 | 151F0532 | 151F0533 | 151F0534 | 151F0609 | |
| 151F2242 | 151F2243 | 151F2244 | 151F2245 | 151F2246 | 151F2247 | 151F2248 | 151F2263 | 151F2267 |
| 151F0535 | 151F0536 | 151F0537 | 151F0538 | 151F0539 | 151F0540 | 151F0541 | 151F0608 |
