Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama produk: | motor orbital hidrolik | Penghapusan: | 375cc |
|---|---|---|---|
| Aplikasi: | Mesin pertanian, mesin bor | Bahan: | besi cor |
| Suhu minyak: | normal-35 ℃ -80 ℃ | Batang: | sumbu kunci lurus 25mm |
| Menyoroti: | Motor hidraulik BMRS-375,Motor hidraulik 160 rpm,4 Bolt Mount Motor Hidraulik |
||

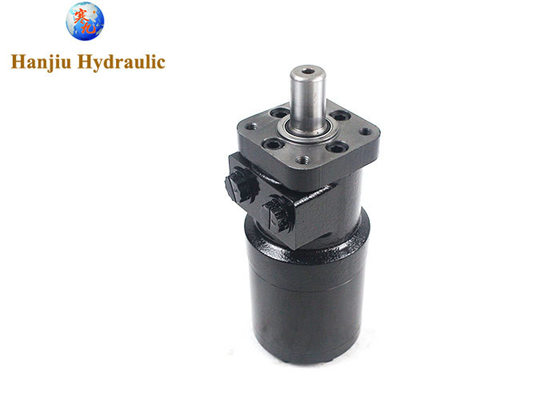

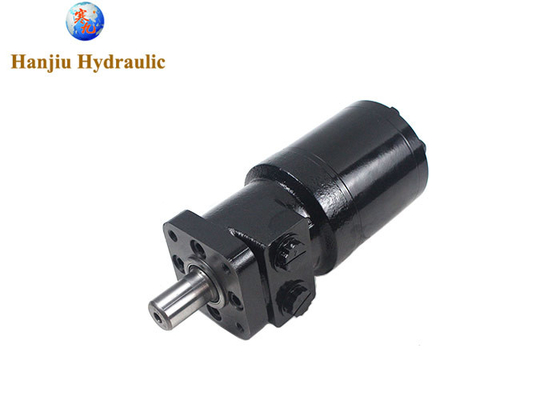

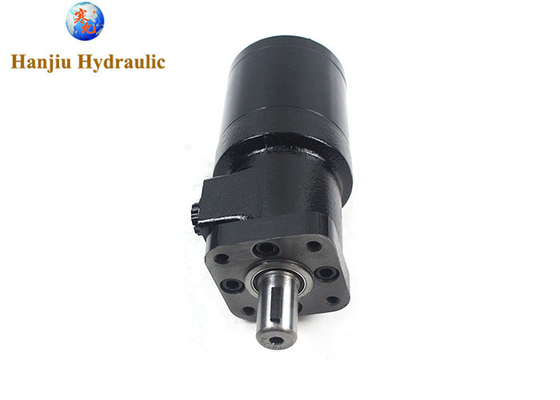

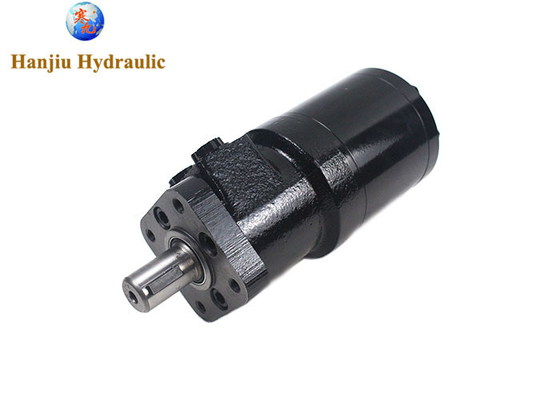

BMRS-375 Kecepatan rendah torsi tinggi Motor hidrolik 4 baut 160 rpm,Straight poros kunci
Fitur:
Spesifikasi Teknis untukBMRS-375-H4-K-S
Pengganti Drop-In untuk:
Spesifikasi utama:
Data teknis untuk BMRS dengan 25 dan 1 in dan 1 in splined dan 28.56 shaft tapered:
| Jenis | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Perpindahan geometris (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Kecepatan maksimum (rpm) | Kont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Torsi maksimum (N·m) | Kont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| puncak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Maks. output (kW) | Kont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. penurunan tekanan (MPa) | Kont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| puncak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. aliran (L/min) | Kont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Berat (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
