Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Jenis: | Motor Hidrolik Gerotor | Torsi maksimum: | lanjutan 25nm/int35nm |
|---|---|---|---|
| Kecepatan maksimum: | cont814rpm/int.1000rpm | Penghapusan: | 20 cc |
| Aliran Maks: | cont.20l/min int.25l/min | max.output: | Kont.2.4kw/int.3.2kw |
| Menyoroti: | OMM20 Hidrolik Orbit Motor,MM20 Motor Orbit Hidraulik,BMM20 Hydraulic Orbit Motor |
||
Rincian produk:

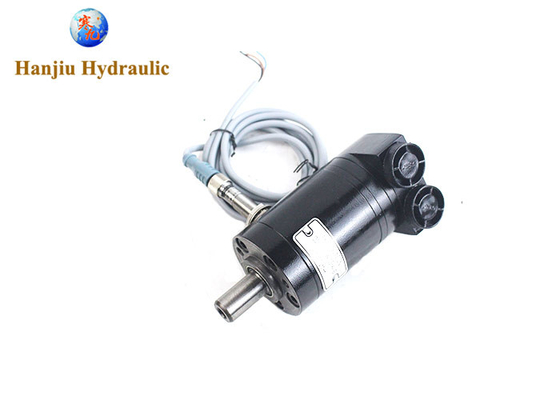

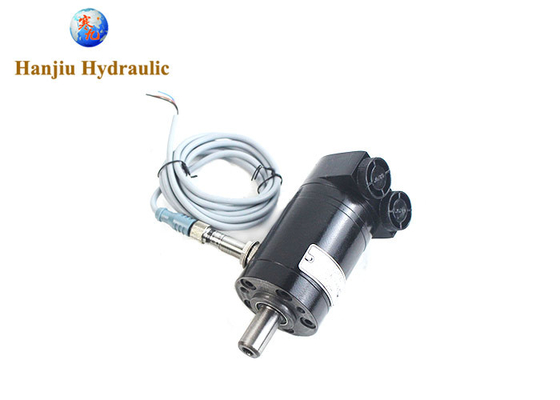

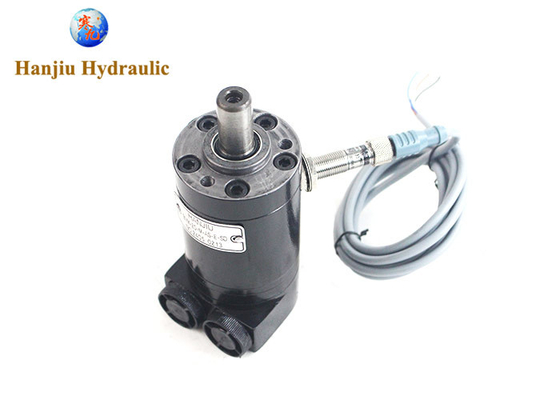

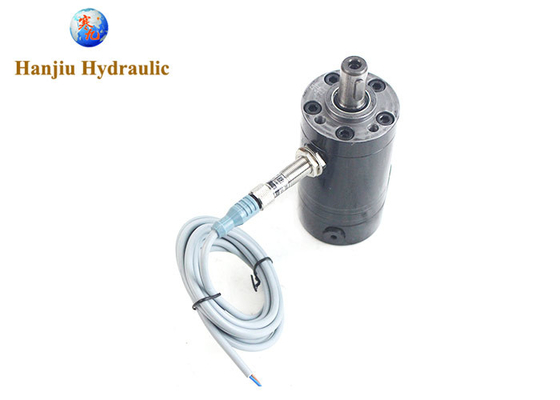

Merek:Hanjiu
jenis:OMM20/BMM20
poros:poros kunci
pelabuhan: pelabuhan sisi
khusus:dengan sensor kecepatan
Spesifikasi utama:
| jenis | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| pergeseran | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Kecepatan maksimum ((rpm) | bernomor | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Kont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Torsi maksimum (N*M) |
bernomor | 8 | 13 | 19 | 31 | 37 | 33 |
| Kont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| puncak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Kecepatan maksimum (kw) |
bernomor | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Kont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Tekanan maksimum penurunan (MPa) |
bernomor | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Kont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| puncak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Aliran maksimum ((L/menit) | bernomor | 14 | 18 | 18 | 18 | 20 | 20 |
| Kont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Berat ((kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Jenis | Tekanan masukan maksimum | |
| BMM8-50 | Kont. | 17.5 |
| (Mpa) | Int. | 22.5 |
