Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama produk: | motor gerol hidrolik | Bahan: | besi cor |
|---|---|---|---|
| Nomor model: | BMPH-82-H2-K-B4 | Fitur: | Segel oli bertekanan tinggi |
| Penghapusan: | 80cc | Batang: | Poros kunci 1 inci |
| Menyoroti: | Motor roda gigi hidraulik dengan port manifold,Motor hidraulik gear 2 baut,101-1042-009 Motor Girang Hidraulik |
||

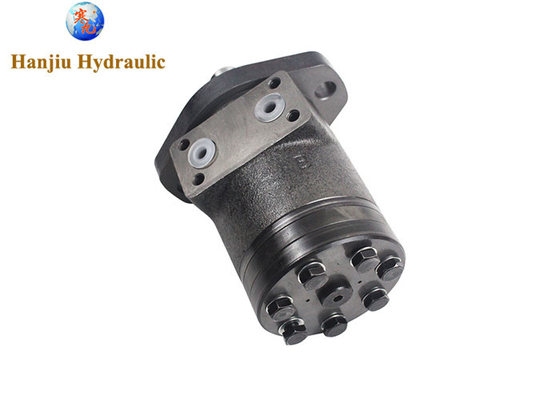

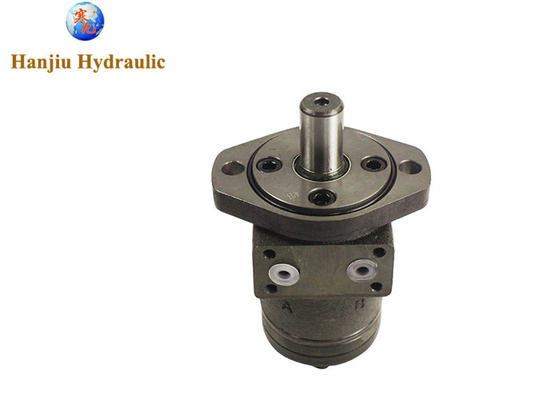

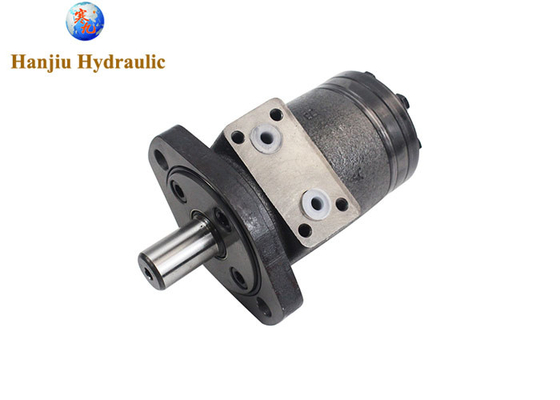

motor gear hidrolik charlynn 101-1042-009 2 baut pemasangan, 1 inci poros kunci dengan port Manifold
Rincian produk
tipe model:BMPH-82-H2-K-B4
Tipe yang bersaing:101-1042-009,1011042009
Perpindahan: 80cc
Flange: 2 baut flange romb, φ106.4mm, pilot φ82.5x8
poros: φ25.4mm,poros kunci kayu
benang port:multiple o-ring port
Spesifikasi
| Jenis | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Pergeseran geometris (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Kecepatan maksimum (rpm) | Kont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Torsi maksimum (N·m) | Kont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| puncak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Maks. output (kW) | Kont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. penurunan tekanan (MPa) | Kont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| puncak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. aliran (L/min) | Kont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Berat (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Manfaatnya:
• Efisiensi tinggi
• Kompak yang kuat
Paket
• Fleksibilitas desain
• Kinerja bebas kebocoran yang diperpanjang
Aplikasi:
• Mesin penggiling pertanian,
mesin pemanen, pembibitan
• Sikat cuci mobil
• Pengolahan makanan
• Pemeliharaan kereta api
peralatan
• Mesin alat
• Conveyor
• Mesin sapu industri dan
mesin polishing lantai
• Pabrik gergaji
• Peralatan rumput
• Beton dan aspal
peralatan
• Perlengkapan kemudi skid
| perpindahan | Selang | Kode motor seri H | ||
| 36cc | 1 in. lurus w/Woodruff kunci |
101-1700-009 | 101-1704-009 | 101-1708-009 |
| 46cc | 101-1033-009 | 101 -1025-009 | 101-1041-009 | |
| 59cc | 101-1701-009 | 101-1705-009 | 101-1709-009 | |
| 74cc | 101-1034-009 | 101-1026-009 | 101-1042-009 | |
| 97cc | 101-1035-009 | 101-1027-009 | 101-1043-009 | |
| 120 cc | 101-1702-009 | 101-1706-009 | 101-1710-009 | |
| 146 cc | 101-1703-009 | 101-1707-009 | 101-1711-009 | |
| 159cc | 101 -1036-009 | 101-1028-009 | 101-1044-009 | |
| 185 cc | 101-1037-009 | 101-1029-009 | 101-1045-009 | |
| 231cc | 101-1038-009 | 101-1030-009 | 101-1046-009 | |
| 293 cc | 101-1039-009 | 101-1031-009 | 101-1047-009 | |
| 370 cc | 101 -1040-009 | 101-1032-009 | 101-1048-009 | |
