Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama produk: | motor gerol hidrolik | Bahan: | besi cor |
|---|---|---|---|
| Nomor model: | BMPH-125-H2-S-B4 | Fitur: | Segel oli bertekanan tinggi |
| Penghapusan: | 125cc | Batang: | POROS SAE 6B |
| Menyoroti: | Motor geroler hidraulik 2 baut,O-Ring Port motor geroler hidrolik,Motor geroler hidraulik manifold |
||

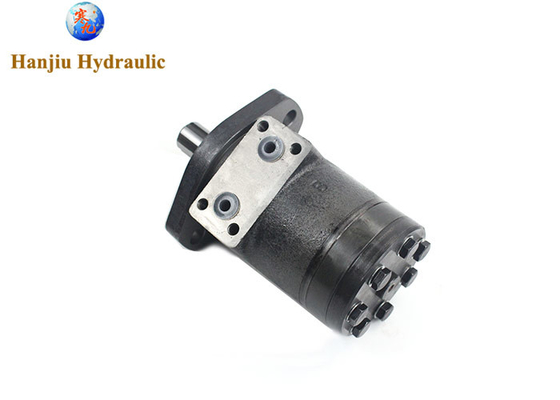

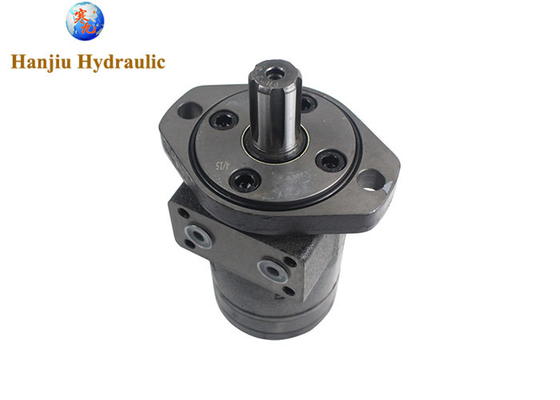

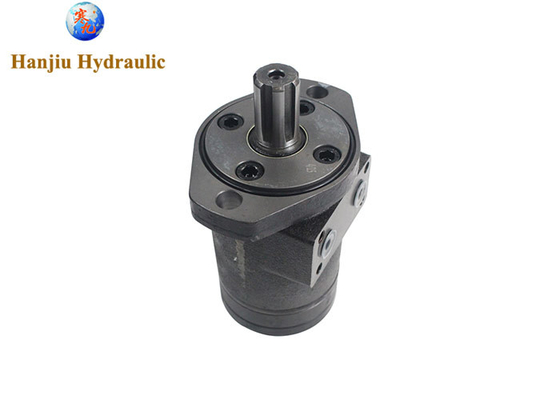

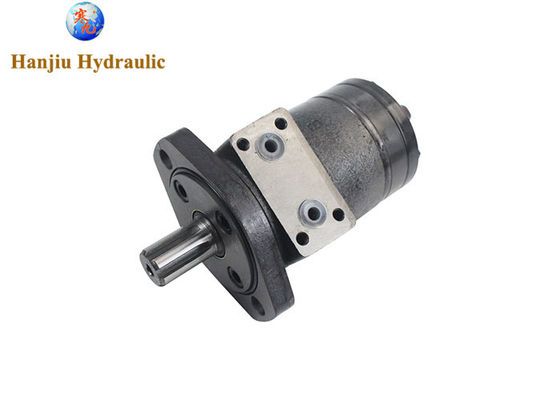

mesin geroler hidrolik charlynn 101-1731-009 2 baut pemasangan Manifold, O-Ring Port
Rincian produk
tipe model:BMPH-125-H2-S-B4
Jenis yang bersaing:101-1731-009,1011731009
Perpindahan: 125cc
Flange: 2 baut flange romb, φ106.4mm, pilot φ82.5x8
poros: φ25.4mm SAE 6B poros spline
benang port:multiple o-ring port
Spesifikasi
| Jenis | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Pergeseran geometris (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Kecepatan maksimum (rpm) | Kont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Torsi maksimum (N·m) | Kont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| puncak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Maks. output (kW) | Kont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. penurunan tekanan (MPa) | Kont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| puncak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. aliran (L/min) | Kont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Berat (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Aplikasi
Mesin penggiling, pemanen, pembibitan, penyapu industri, dan polisher lantai untuk pertanian
Fitur
Kompak namun kuat
Kehidupan bantalan yang diperpanjang
Peningkatan segel poros
